80,000-Ton Heavy Petrochemical Pipe Rack Project in Saudi Arabia: High-Load Capacity and Desert Durability
Engineered with thick-walled steel columns and reinforced bracing to safely support the weight of multi-level fluid pipelines.
Project Overview

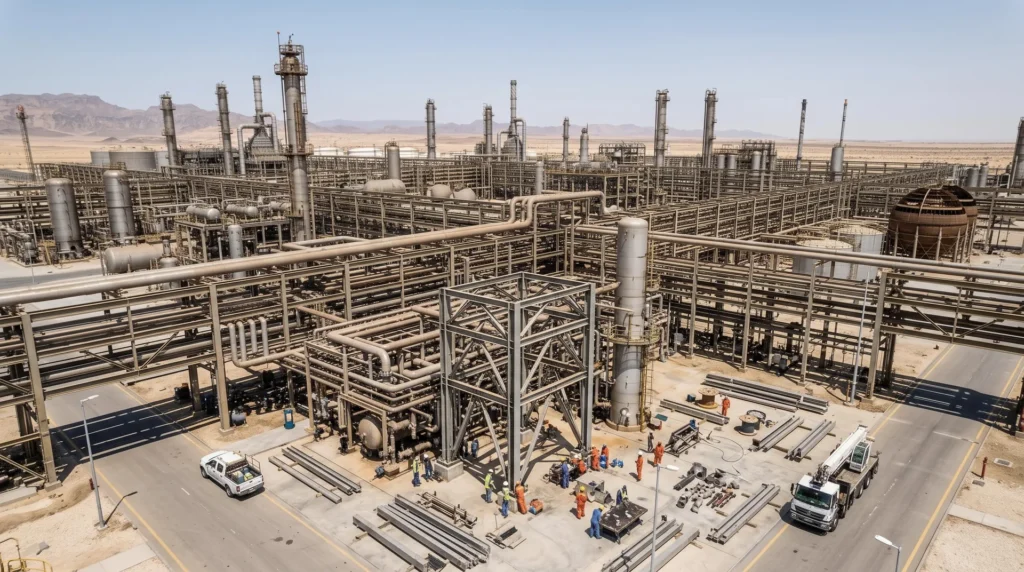

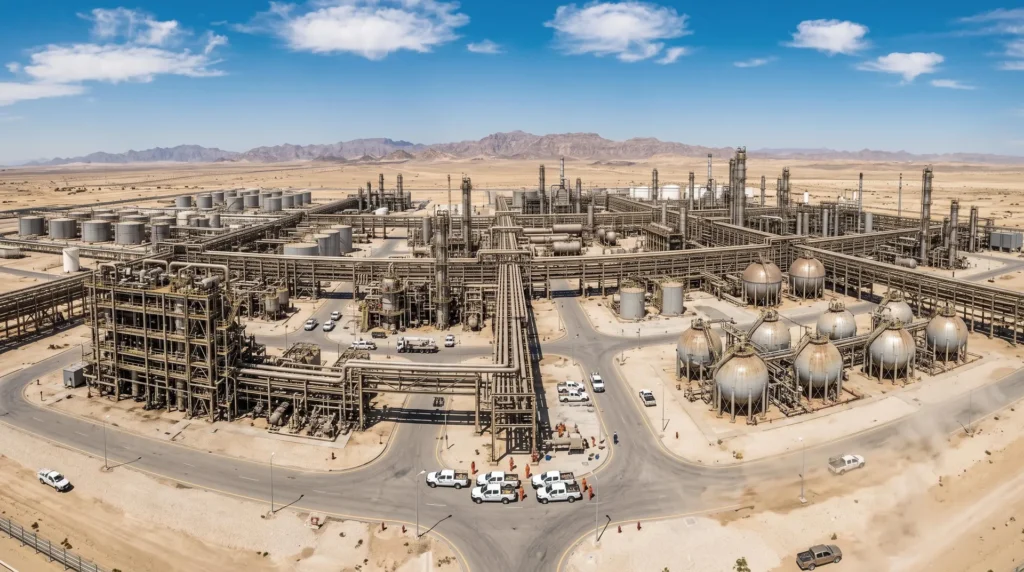

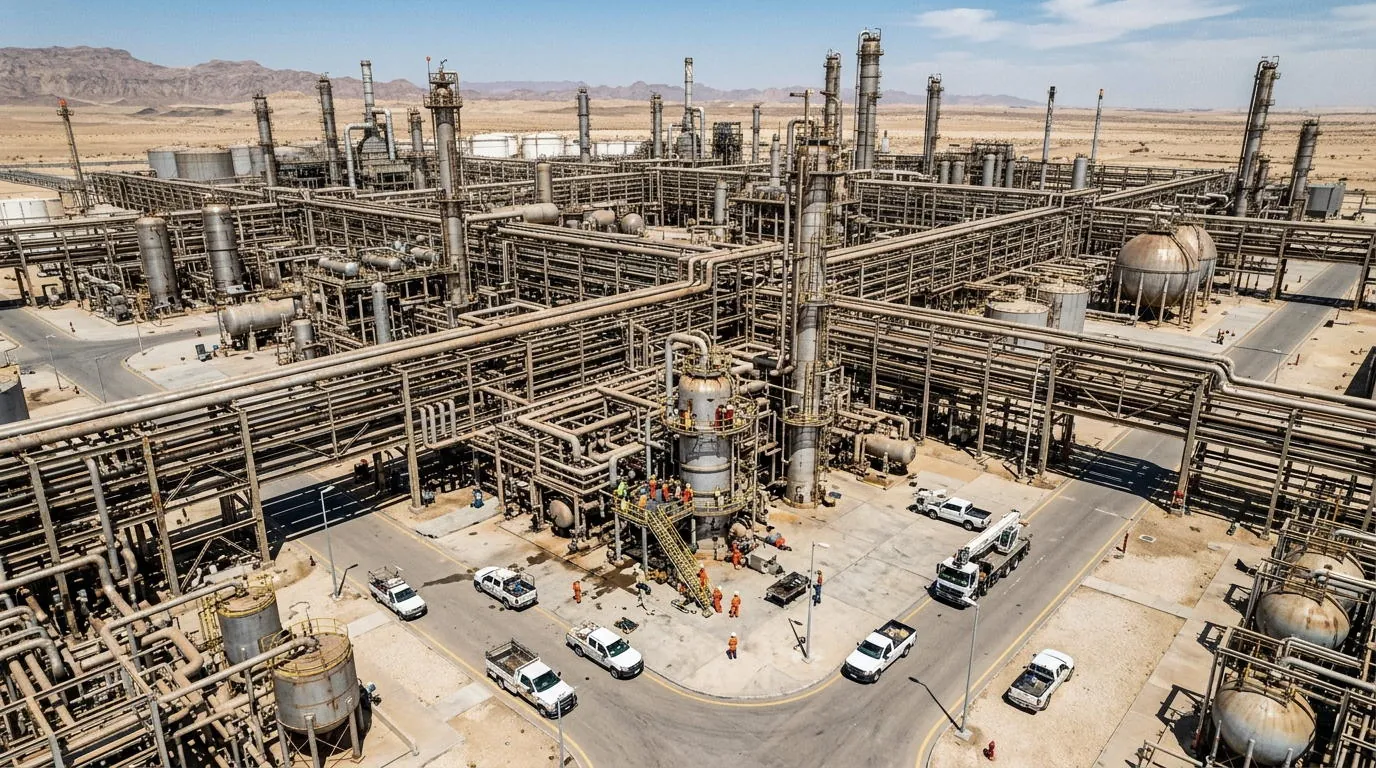

Located in the Saudi desert, this petrochemical facility requires a robust structural network for refining operations. Facility managers prioritize process continuity. Managing a sprawling multi-facility footprint in such an arid climate requires practical execution. They face specific challenges: ensuring pipe racks bear the weight of fluid pipelines, managing thermal expansion during intense summer heat, and protecting steel from sandstorms. Shijie provided a well-engineered steel pipe rack system. We utilized thick-walled H-beams to carry multi-tiered networks. The structure incorporates sliding supports to accommodate thermal expansion, preventing stress fractures. To combat the environment, components received an industrial epoxy coating. By executing a modular assembly strategy, teams erected the matrix efficiently. Completing the framework 45 days early provided the foundation for timely pipeline integration.
| Location | Saudi Arabian Desert Zone |
| Application | Heavy Petrochemical Racks |
| Scale | 80,000 Tons of Steel Structure |
| Structure | Multi-Tier Rigid Steel Frames |
| Load Capacity | High-Tonnage Pipe Support |
| Thermal Design | Sliding Expansion Nodes |
| Corrosion | Heavy-Duty Epoxy Coating |
| Assembly | Pre-Drilled Bolted Joints |
| Logistics | Modular Component Delivery |
| Delivery | Handover 45 Days Early |
Heavy Load Integrity
Engineered with thick-walled steel columns and reinforced bracing to safely support the weight of multi-level fluid pipelines.
Thermal Control
The framework integrates specialized sliding supports to manage dimensional changes caused by extreme temperatures.
Weather Shielding
A heavy-duty industrial epoxy coating system protects the structural steel from the abrasive effects of windblown sand.
Sequential Assembly

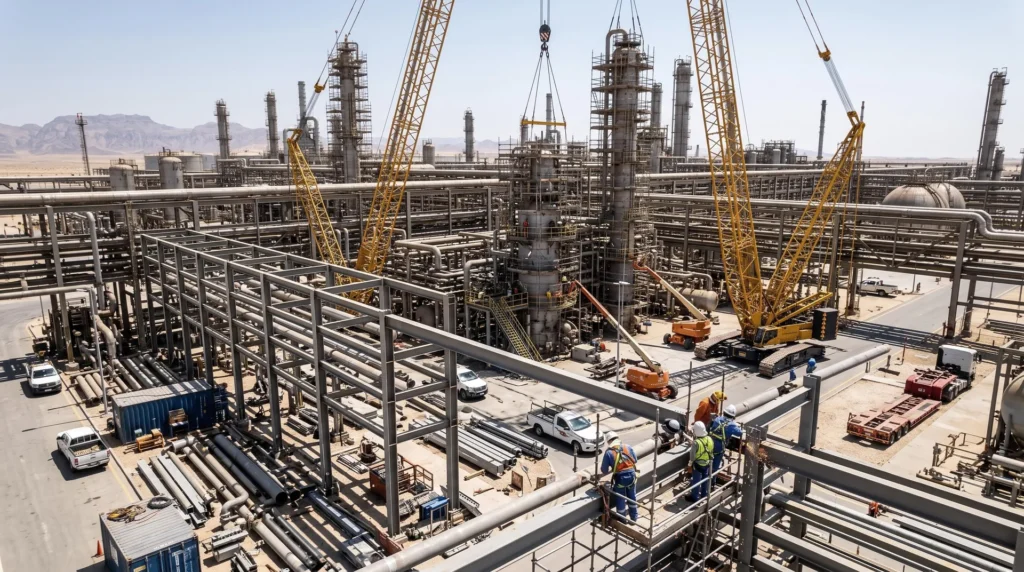

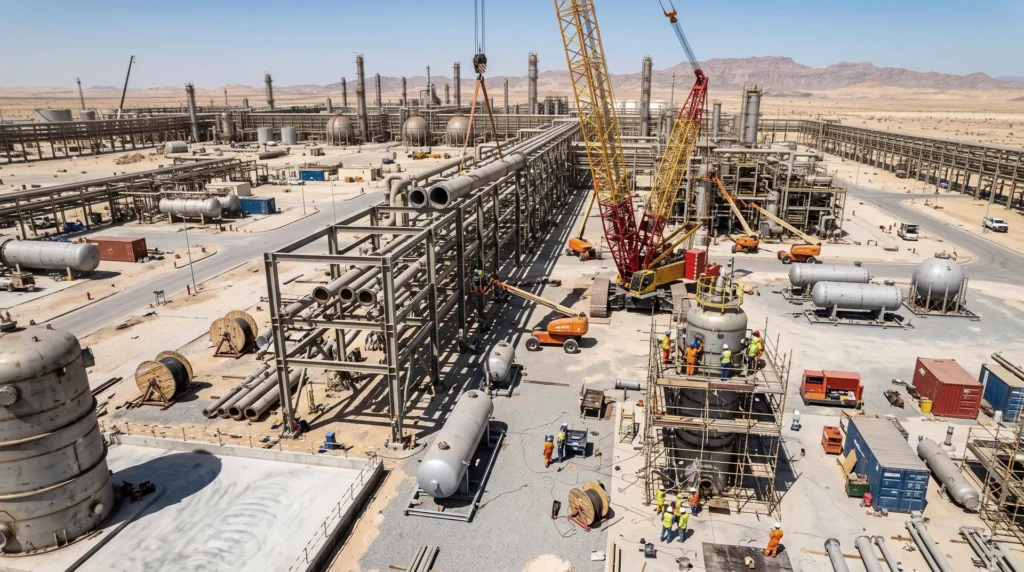

A modular construction approach allowed teams to install extensive rack sections systematically, accelerating the timeline.
Turning Site Challenges into Engineered Certainty
Proven technical interventions to keep your project on spec, on budget, and on schedule
Fluid-filled pipelines place immense stress on supporting infrastructure over long distances.
Deployed multi-tiered rigid frames to distribute heavy loads evenly to the foundations.
Desert temperature fluctuations cause thermal expansion, damaging standard rigid connections.
Incorporated sliding nodes into the racks, allowing the steel to expand and contract safely.
Expanding a petrochemical facility in the Saudi desert demands robust infrastructure. Operating in this region leaves no room for structural fatigue or unexpected maintenance downtime. Our priority is ensuring pipeline networks are supported securely. Shijie delivered a highly capable steel framework. Looking across the plant, the heavy pipe racks handle the multi-tiered pipeline loads with clear stability. Their design effectively addressed thermal expansion in the summer heat, utilizing sliding supports that prevent stress buildup. The industrial coating has held up perfectly against sandstorms. By manufacturing components precisely and using a modular assembly method, they allowed our contractors to build the racks safely. Finishing the structural work 45 days early gave our piping teams time for integration. They are a solid partner.
Products Used in Project
Similar Projects
To be confirmed
Why Global Contractors Choose SynJect
Predictable delivery, certified compliance, and direct engineering support for zero-risk execution
Pre-assembled in our factory and 3D-nested for containers to cut ocean freight and site delays
Fabricated strictly to CE EN 1090-1, AISC, and ISO 9001 / 14001 / 45001 with full NDT traceability
Work directly with senior structural engineers from Tekla 3D modeling to on-site erection
Frequently Asked Questions
What did SynJect supply for this 80,000-ton pipe rack project in Saudi Arabia?
We supplied 80,000 tons of multi-tier rigid steel pipe racks for a petrochemical complex in the Saudi desert: thick-walled columns, reinforced bracing, pre-set sliding expansion nodes and a heavy-duty epoxy coating system. Every member was shop-fabricated, pre-drilled and packed as modular bents for container shipment.
How do the racks absorb thermal expansion across desert day-night swings?
The frame integrates sliding support nodes that let the steel grow and contract without loading the connections. Rack tiers were modelled against the site design temperature range, and the slide shoes stay accessible so maintenance teams can inspect and re-grease them in service.
Can the racks carry multi-level, fluid-filled process lines?
Yes. Thick-walled columns and reinforced bracing distribute multi-tier pipeline loads evenly into the foundations, with tier heights and bent spacing sized to the client’s pipe stress data and operating line loads rather than a generic allowance.
How is the steel protected from windblown sand and desert UV?
All members are blast cleaned to Sa 2.5 and coated with a heavy-duty industrial epoxy system chosen for abrasion resistance in sand-laden wind. Weld seams, cut edges and bolt heads receive stripe coats, and dry film thickness is verified batch by batch before loading.
How was 80,000 tons erected inside a live petrochemical plant?
By shipping the racks as pre-assembled bents with pre-drilled bolted joints and erecting them in sequence against the plant’s shutdown and tie-in windows. There was no field welding, no site drilling and no hot work permit, and that sequencing delivered handover 45 days early.
